Artificial intelligence has emerged as a game-changing technological force disrupting industries ranging from retail to media to medicine. But can big data and complex algorithms transform winemaking, which not only has existed for over 8000 years but is also considered by most to be more art than science? The Palmaz family, who operate Napa Valley’s Palmaz Vineyards, certainly believe so. The family has spent the better part of a decade building a technologically sophisticated end-to-end wine making process incorporating advanced sensing technology and proprietary artificial intelligence systems to generate, process, and visualize billions of data points in order to – hopefully – produce a better bottle of wine.
Introduction to Palmaz Vineyards (Video Source)
“An aggressive approach to innovation”
Palmaz Vineyard’s unique approach to winemaking was apparent early on, when they designed the abnormal layout of their vineyard based on nearly 5,000 soil composition tests and then built the winery nearly 18 stories deep into the mountainside to enable gentle transportation of components with gravity instead of pumps. Today, their core differentiation lies in the technological infrastructure that they built in-house to augment nearly every aspect of the winemaking process.
Starting with grape growth, the Vineyard Infrared Growth Optical Recognition system combines data from bi-weekly fly overs of a plane boasting a multi-spectral infrared camera that detects plant chlorophyll levels with neutron probe soil testing that detects moisture levels. The AI system uses this data to not only detect burgeoning issues such as viruses but also to modulate watering algorithms and thereby standardize grape growth throughout the vineyard.
VIGOR Data Visualization (Image Source)
Moving onto fermentation, the Fermentation Intelligence Logic Control System utilizes start-of-the-art thermographic sensors to monitor temperature and sono-densitometry tools to sense vibrations of fermenting wine in order to quantify the fermentation progression at a granular level. The AI system is then able to both notify winemakers of abnormalities as well as automatically adjust parameters to complete fermentation without human intervention.

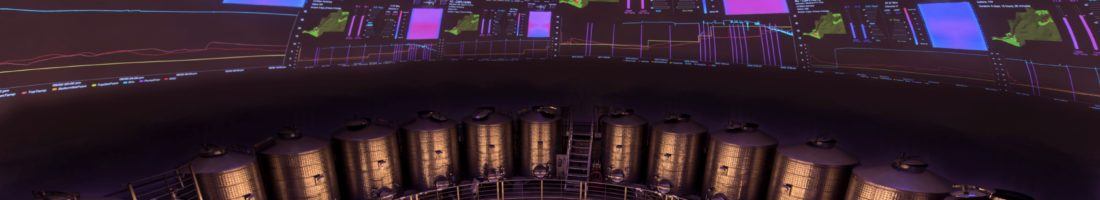

FILCS Data Visualization on Fermentation Dome (Image Source)
Beyond VIGOR and FILCS, the vineyard has implemented technology ranging from a rotating carousel of fermentation tanks (pictured below) to an RFID system that tracks user locations to mechanisms to visualize data in both apps and on the ceiling of the fermentation dome. Their newest innovation efforts are directed at using mass spectrometry to optimize barrel material composition and configurations.
Rotating Carousel of Fermentation Tanks (Image Source)
Value creation and capture
The early results from Palmaz Vineyard’s experimental approach to winemaking have been promising. The VIGOR system’s AI capabilities has enabled them to cut water usage by about 20% and align the ripening timeline for all grapes thereby improving fruit quality. The FILCS AI algorithm has continued to learn and improve such that it can now flag an upcoming issue approximately 30 hours in advance thereby allowing for proactive mitigations. Interestingly, the FILCs system proved its worth in 2017, when the family had to evacuate the vineyard due to wildfires and the smart fermentation tanks continued to automatically control the fermentation process and save about $10M worth of wine.
While the statistics above make clear that the use of big data analytics has enabled Palmaz to create value during the winemaking process, the question remains how much of the upfront technology investment is recouped during the wine selling process. Since the cheapest bottle of their flagship varietal – Cabernet Sauvignon – is $165 and many bottles are either sold out or exclusive, I speculate that they are doing just fine from a value capture perspective.
Challenges and opportunities
Art vs. science
The primary challenge faced by Palmaz is the fact that their data-driven approach goes against the traditional ethos of winemaking that is rooted in a very old-school, romantic, and artisanal style. While Palmaz claims that their winemakers still control all critical decisions in a traditional manner – just bolstered by a deeper set of underlying data – it’s unclear if their methodology can break through in the old-fashioned world of wine connoisseurs.
However, the unique approach also presents an opportunity to shatter expectations and garner significant media/PR buzz. Consider, for example, if they held a blind taste test pitting their AI-augmented wine against traditional powerhouse brands. Just as The Judgment of Paris in 1976 upended conventional wine wisdom when Californian wines defeated French incumbents in a blind tasting, such an event could have significant and long-term benefits for their strategy.
Another challenge is translating their tech-focused winemaking approach into sustainable consumer interest. Given the ubiquity of data analytics in modern society, I would hypothesize that there is a significant subset of customers who would jump at the opportunity to better understand how their wine preferences correlate to things like pH levels, barrel material, and weather conditions. Palmaz already incorporates some of these elements into their product websites, but could double down on this further by, for example, creating a consumer-facing app to close the data loop between wine making and wine tasting.
Example Product Page Data (Image Source)
Brand vs. technology
A final challenge/opportunity that Palmaz faces is how to position themselves moving forward. Their current approach focuses on using their technology and analytics only at their vineyard to produce wines sold under their brand. Since their true value proposition extends well beyond the brand itself and into the entire winemaking process, I recommend that they consider licensing their technology to other wineries through a “Wine-as-a-Service” business model to create and capture value across the industry versus at a single vineyard.
Palmaz Vineyard is pursuing a highly digital approach in an incredibly analog industry. While their early successes have demonstrated significant value savings internally during winemaking, it remains to be seen if their approach will translate into a sustainable product or service differentiation externally in the competitive wine market. I for one plan to sit back, pour myself a glass of (substantially cheaper) wine, and see how it all unfolds.
